Side Lock Envelope

Make it your shape

Choose the size and shape your side locks, pocket and closing flap.

Unfolded template210 × 170 mm
Side Lock Envelope 166 — provisional dieline Millimetres. Solid outline: cut; dashed red: crease; dotted green: finished panel; gold: glue. Requires physical validation before production.

Select a dimension to see the part it changes.

Side Lock Envelope 166 — folded preview with closure open Illustration only. Use the separate dieline for paper mock-ups. Physical validation required.
Side Lock Envelope 166 — folded preview closed Illustration only. Use the separate dieline for paper mock-ups. Physical validation required.
SVG DXF PDF
Choose paper and colour →

Illustrative examples. Your live preview shows the dimensions and flap choices you select.

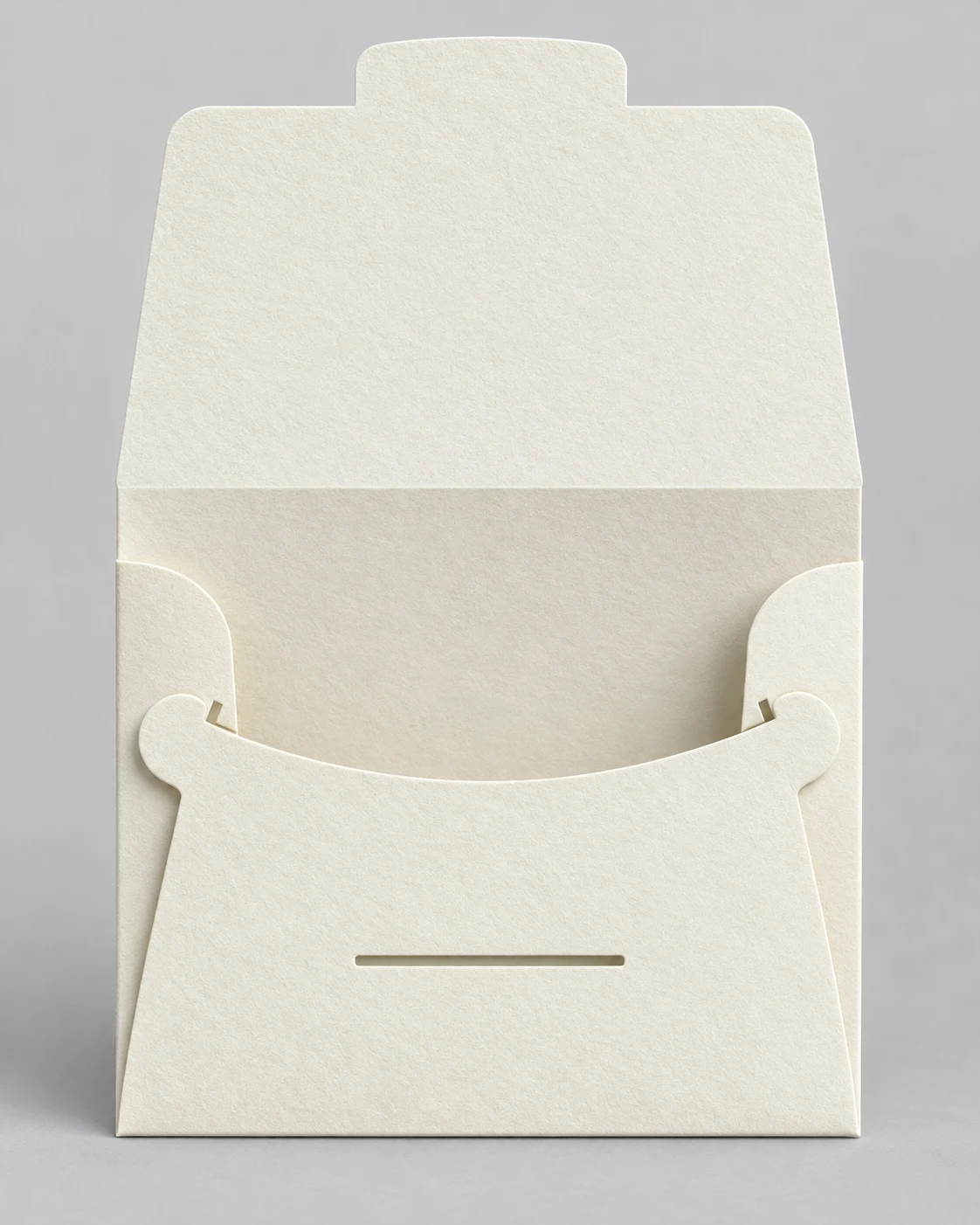

Side locks with the closing flap open
Side locks with the closing flap open

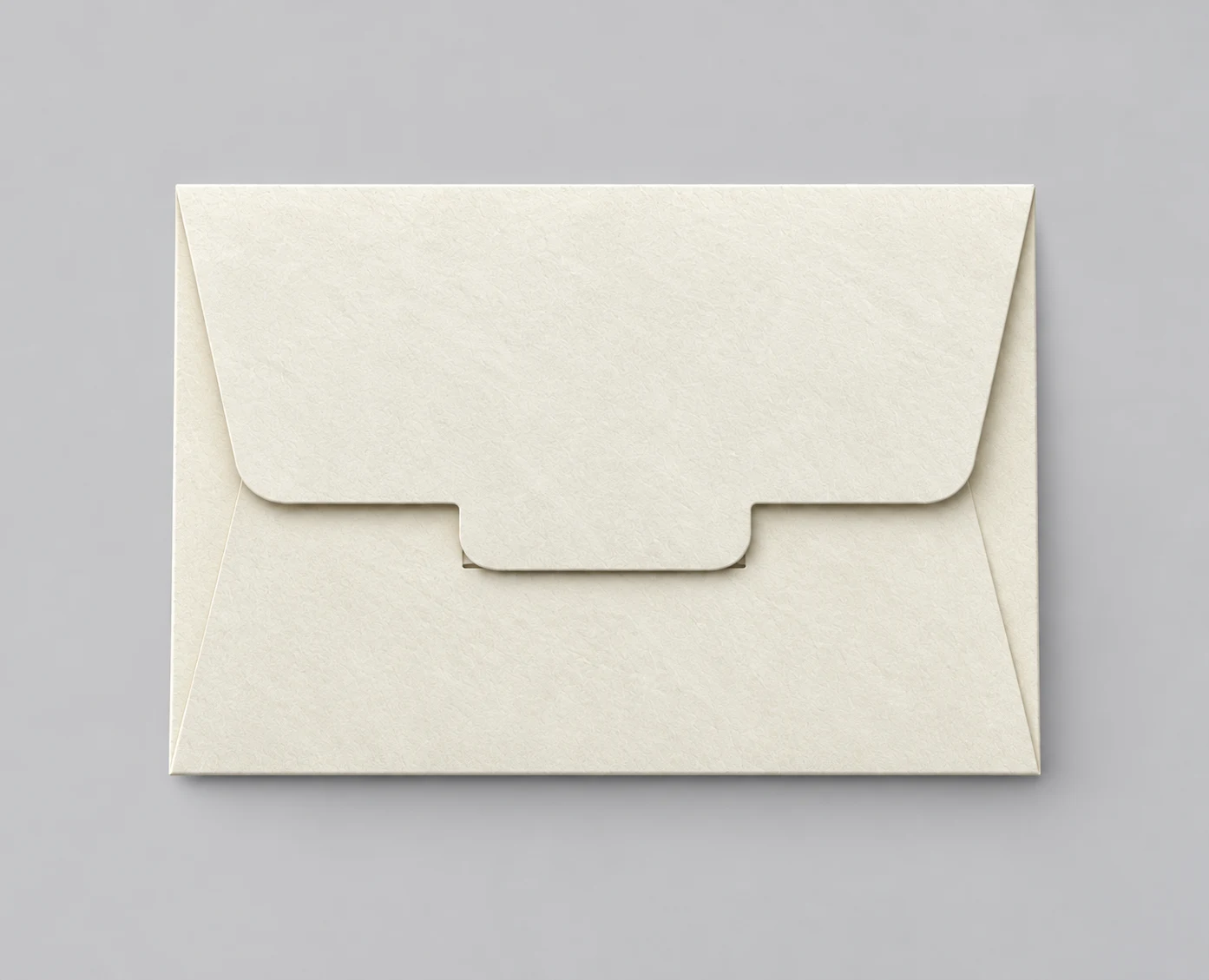

Envelope closed with its tab tucked in
Envelope closed with its tab tucked in

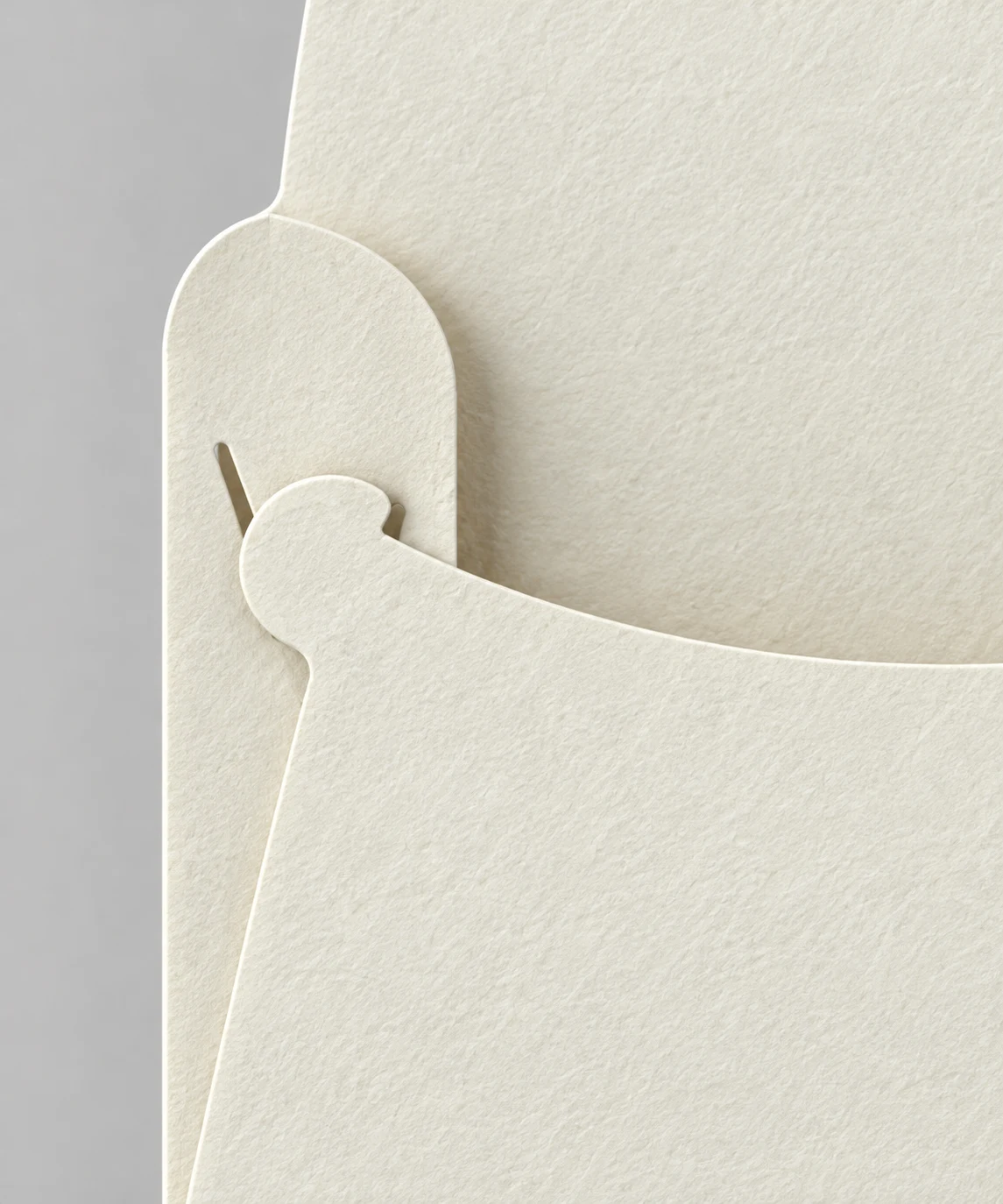

Side lock detail
Side lock detail

Test a paper mock-up before cutting a batch. These templates still need physical validation.
